Product Overview:

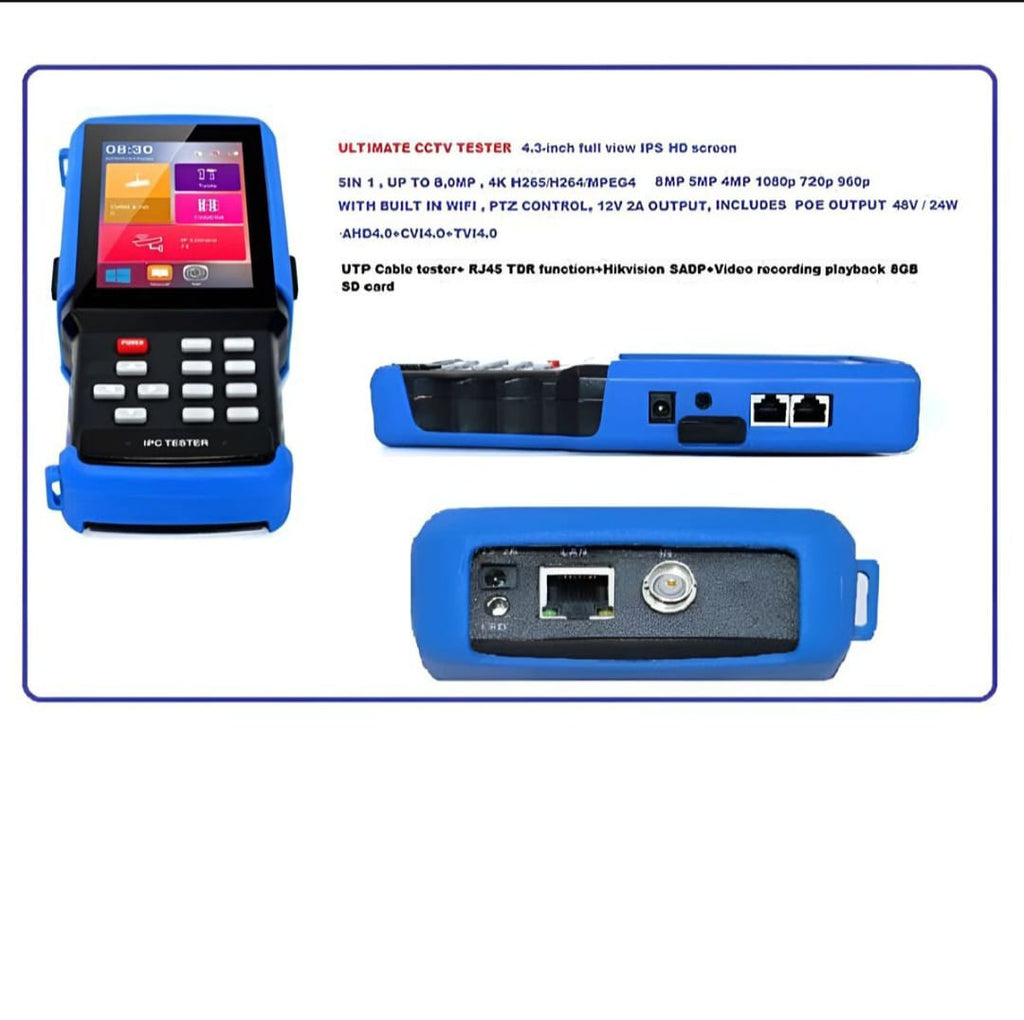

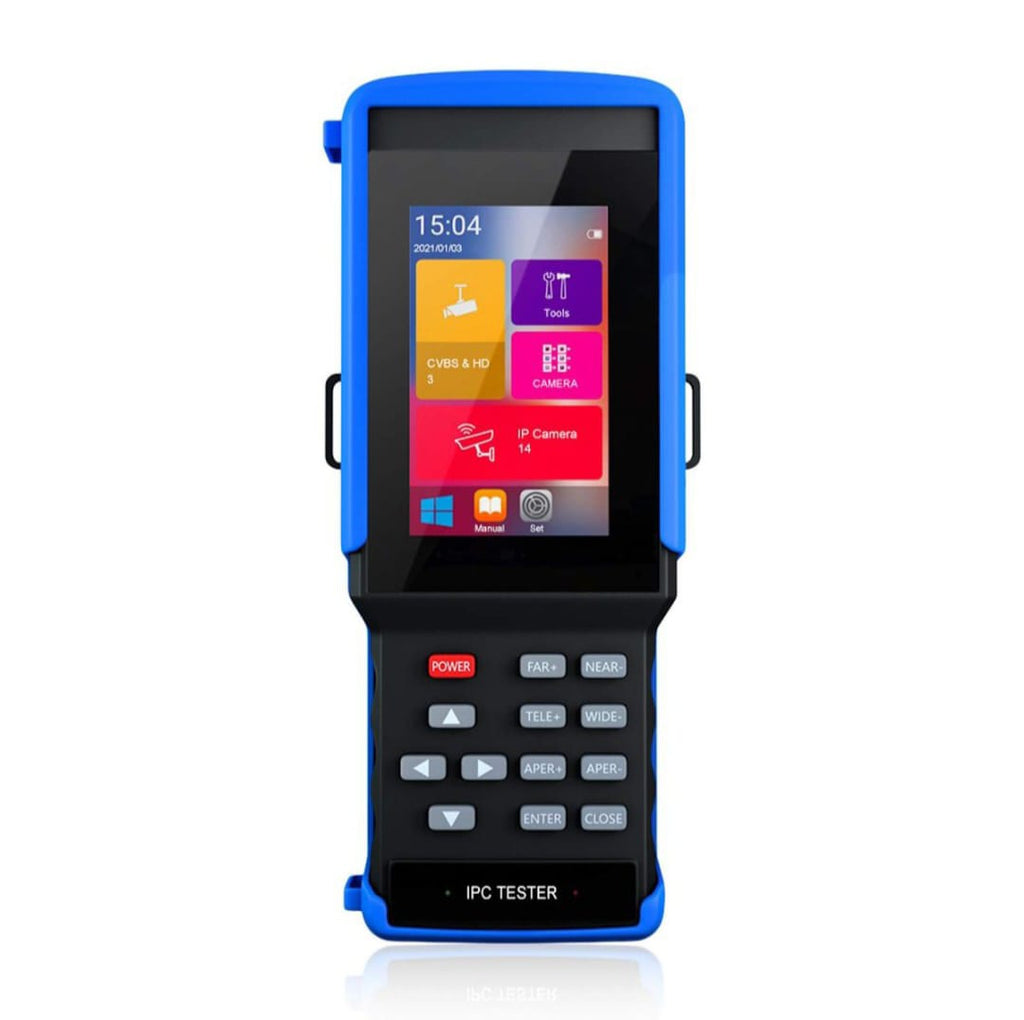

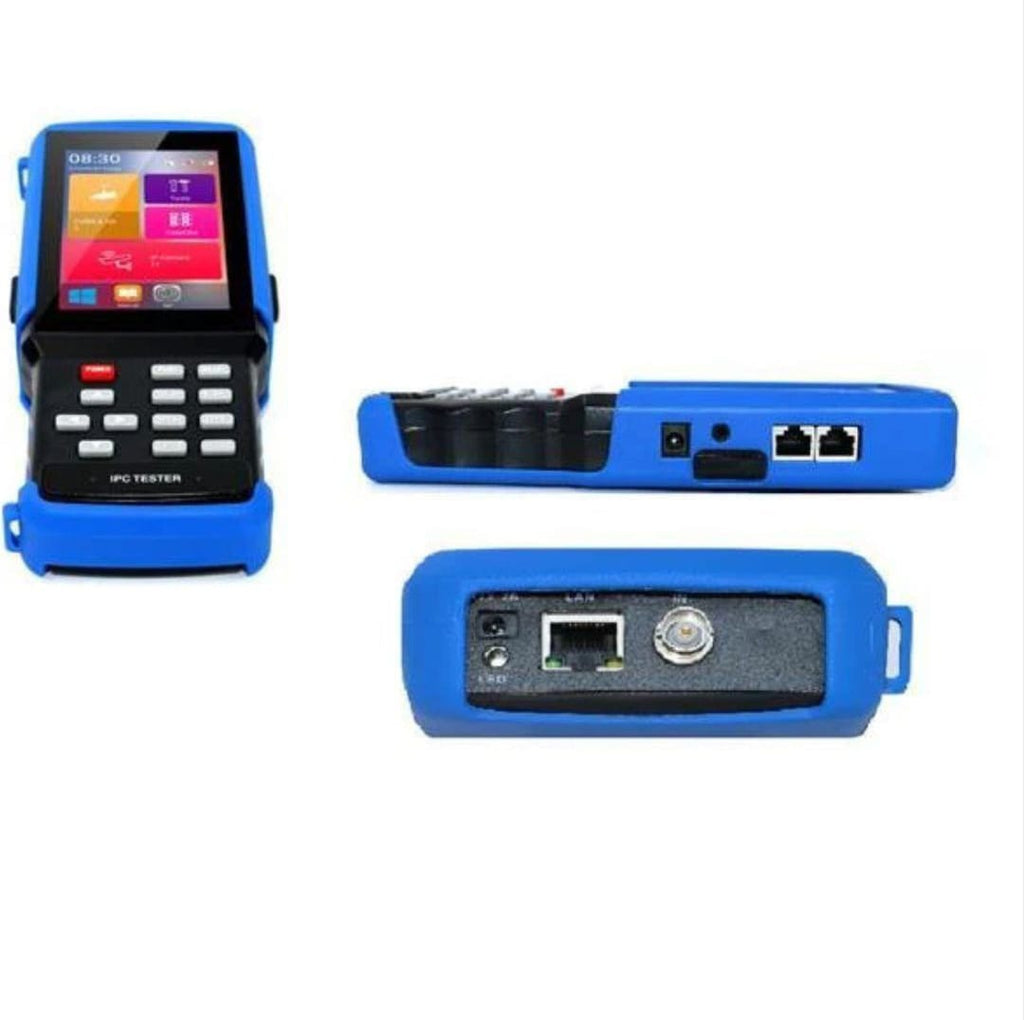

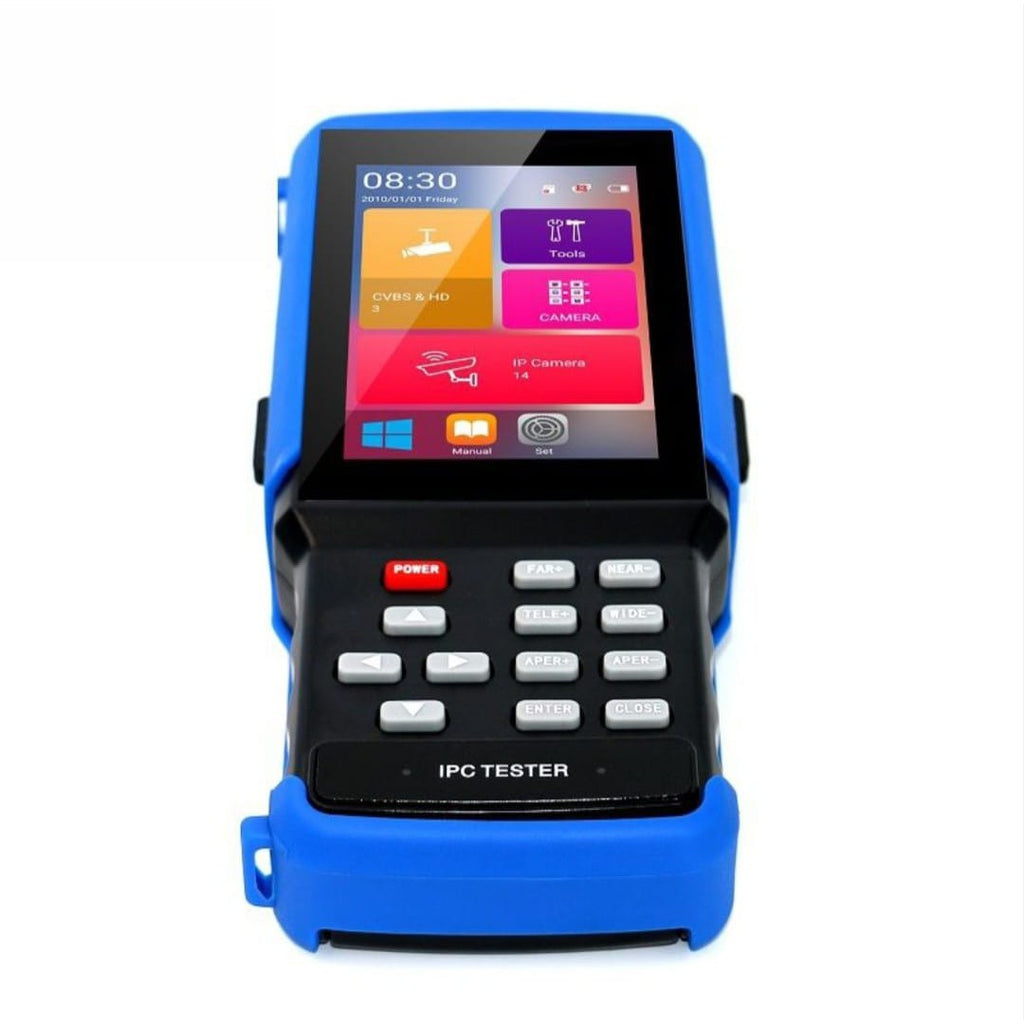

The CCTV Tester IP 9310 5-in-1 with PoE is a powerful, all-in-one professional testing tool designed for CCTV installers, technicians, and maintenance teams. Featuring a bright 4.3-inch capacitive touch screen, multi-camera compatibility, PoE testing, and advanced network diagnostics, this tester allows you to quickly install, configure, and troubleshoot IP, analog, and HD cameras with confidence. Its portable design, long-lasting battery, and extensive protocol support make it an essential tool for efficient on-site work.

Key Features:
-5-in-1 Camera Testing: Supports IP, AHD, CVI, TVI, and Analog CVBS cameras in one device.
-High-Resolution Camera Support: Tests up to 8.0 MP cameras with smooth real-time display and H.265 decoding.
-4.3-Inch Capacitive Touch Screen: G+G structure screen with high transmittance, wear resistance, and adjustable brightness up to 500 cd/m².
-PoE Testing & Power Output: Built-in PoE voltage testing and DC 12V / 3A power output for powering cameras directly.
-Advanced Network Tools: Includes IP scan, PING test, RJ45 TDR cable testing, and built-in Wi-Fi (150M).
-ONVIF & Protocol Support: Supports ONVIF cameras and private protocols from Hikvision, Dahua, ACTI, NCR, and more.
-PTZ Control: Compatible with over 30 PTZ protocols including PELCO-P, PELCO-D, and Samsung.
-Video Recording & Storage: Record video, capture photos, and store data via internal 4GB storage or MicroSD card.
-HDMI Output: Supports 1080P at 60fps for external display viewing.
-Built-In LED Light: Bright white LED for easy operation in dark environments.
-Long Battery Life: 3000mAh lithium battery provides up to 12 hours of continuous use.

Specifications:
-Device Type: CCTV Tester.
-Model: IP 9310 | 5-in-1 + PoE.
-Display: 4.3-inch capacitive touch screen.
-Resolution Support: Up to 8.0 MP.
-Video Formats: H.265, H.264, MPEG4, MJPEG.
-Camera Types: IP, AHD, CVI, TVI, CVBS.
-Ethernet: 10 / 100 Mbps.
-Wi-Fi: Built-in 150M wireless.
-Zoom: Up to 5× digital zoom.
-Power Output: DC 12V / 3A with short-circuit protection.
-Battery: 7.4V 3000mAh polymer lithium.
-Charging Time: ±5 hours.
-Working Time: Up to 12 hours.
-HDMI Output: 1080P @ 60fps.

Why This CCTV Tester Is a Great Choice:
This tester combines multiple essential CCTV tools into one compact device, saving time and effort during installation and maintenance. Its wide camera compatibility, powerful PoE support, and advanced networking functions allow technicians to diagnose issues quickly and accurately. The bright touch screen, long battery life, and durable design ensure reliable performance even during long working days, making it a dependable solution for professional CCTV work.

Ideal For:
-CCTV installers and technicians.
-Security system maintenance and troubleshooting.
-IP and analog camera configuration and testing.
-Network diagnostics for surveillance systems.
-Professionals working on residential, commercial, or industrial security installations.
